Product Overview
Contact us and find out why you should buy your next guitar from Liberty Music! We fully inspect your instrument more than once, when received and when shipped. We also will SETUP your instrument at no additional charge prior to shipping your order.
We offer the follwing to help you secure your next dream guitar;
TRADE FROM ANYWHERE PROGRAM
- We accept trades on any musical instruments from anywhere simply reach out and we take care of all the logitics.
FINANCING UP TO 48 Months*
- We offer financing up to 48 Month* with Affirm, Synchrony, and Klarna, contact us today to find out more!
90 DAY LAYAWAY!
We buy, sell and trade with financing options with Klarna, Affirm and Synchrony available.
We will also beat any competitor's price.
-

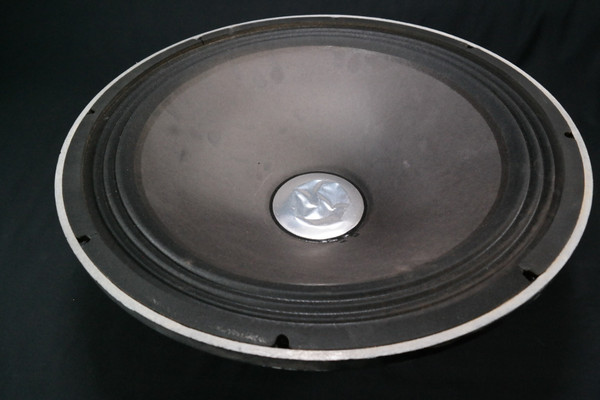

CONDITION: AS SEEN PER PHOTO, The horn is crushed and the speaker is giving a multi-meter reading of 1.7 (2-3 range)
JBL SPEAKER - USED - 464
Model: E155-4
FEATURES:
E series 46 cm cone type woofer unit developed for playing musical instruments.
The E155 is ideal for playing electronic organs and bass.
It uses large magnetic quiro, cone paper with excellent responsiveness, and large frame.
The enclosure is used in a bass reflex or horn load.
SPECS:
Type: 46 cm cone type woofer unit
Impedance: 8 Ω
Allowable input (continuous program): 600W
Sound pressure level: 100dB/W/m
Frequency characteristic: 30 Hz to 2kHz
fo: 30Hz
Voice Coil Diameter: 10.2cm
Weight of magnetic circuit: 9.1kg
Magnetic flux density: 12,500gauss
Enclosure volume: 85 ~ 225L
External dimensions: Diameter 464x Depth 185 mm
Weight (packed): 13.6kg
Thiele-Small Parameters
fs: 30Hz
Re: 6.0 Ω
Qts: 0.20
Qms: 2.2
Qes: 0.22
Vas: 425L
SD: 0.115m2
Xmax: 5.0mm
VD: 575.0cm2
Le: 1.4mH
Η0(Half space): 4.90%
Pe(max) (continuous sine wave input): 300W
