Contact us and find out why you should buy your next guitar from Liberty Music! We fully inspect your instrument more than once, when received and when shipped. We also will SETUP your instrument at no additional charge prior to shipping your order.
We buy, sell and trade with financing options with Klarna, Affirm and Synchrony available.
We will also beat any competitor's price.
Photos are of the actual guitar for sale that you will receive when purchasing this listing.
We are an AUTHORIZED DEALER. This comes with a full manufacturer’s warranty and is inspected upon receipt from the supplier and again prior to shipping your order.
Weight: 10.13 Lbs
-

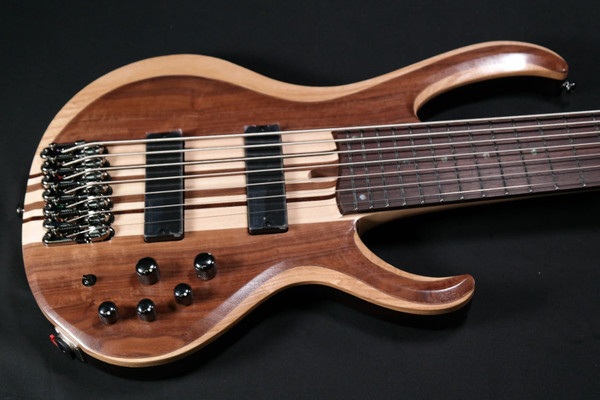

The Ibanez BTB747NTL 7-string bass fits in perfectly with the rest of the acclaimed BTB series while adding even more sonic options.
The 5pc Maple/Walnut neck provides tonal clarity and superior attack.The Graphite reinforcement rods provides massive sustain and excellent stability.
Rosewood provides a well-balanced solid tone with a focused mid range.
Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.
The Bartolini® BH2 pickups provide a tight bottom-end, punchy mid-range, and smooth response. The dual-coil style configuration maximizes articulation and a long blade pole piece widens the magnetic field, providing balanced string-to-string pickup response.
The Mono-Rail V is the ultimate bridge for bass string isolation. Each bridge is independently and securely locked down to the body for maximum vibration transfer without interference.
Controls:
With the bass held in the playing position, there are three small knobs closest to the lower edge of the body. Directionally, from the lower bout towards the neck knobs are treble boost/cut, mid boost/cut, and bass boost/cut. There are two larger knobs above these, closer to the bridge. The knob closest to the neck controls volume, and the knob next to it is the pickup balancer control. There is a 3 way mid frequency switch next to the balancer knob. When the switch is in neck position, mid boost peak is at 250Hz. When the switch is in center position, mid boost peak is at 450Hz. When the switch is in bridge position, the mid boost peak is at 700Hz.
Frequency Response:
The bass boost/cut frequency curve has a peak at 20 Hz, the variable width becomes smaller toward the high range, and the variable width becomes zero at about 1000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve draws a mountain-shaped curve with a peak at around 10,000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB. The mid-boost/cut frequency curve creates a bell-shaped curve that peaks at a specific frequency, and the variable range becomes zero near 20 Hz and around 10,000 Hz. The frequency peak can be switched to 700, 450 and 250 Hz. The variable range of the peak frequency is approximately ±15 dB.
Specifications:
- neck type: BTB7 / 9pc Maple/Panga Panga/Walnut w/Graphite reinforcement rods / Neck-through
- top/back/body: Walnut top / Ash/Okoume wing body
- fretboard: Rosewood fretboard / Abalone dot inlay
- fret: Medium Stainless Steel frets
- number of frets: 24 (+ zero fret)
- bridge: MR5 bridge
- string space: 15.5mm
- neck pickup: Bartolini® BH2 neck pickup/Passive
- bridge pickup: Bartolini® BH2 bridge pickup/Passive
- equaliser: Ibanez Custom Electronics 3-band EQ w/ 3-way Mid frequency switch
- factory tuning: 1F,2C,3G,4D,5A,6E,7B
- strings: D'Addario® EXL170-5SL + .020p/0.32
- string gauge: .020p/.032/.045/.065/.080/.100/.130
- nut: Plastic nut
- hardware color: Cosmo black
Neck Dimensions:
- Scale: 889mm
- Width: 63mm at NUT
- Width: 96mm at 24 (+ zero fret)F
- Thickness: 21mm at 1F
- Thickness: 24mm at 12F
- Radius: 950mmR
From its premium multilayer tonewoods and comfortably contoured body to its top-shelf Bartolini pickups and hardware, there isn't a thing about the Ibanez BTB746NTL that a seasoned bass player can't instantly appreciate.
