Product Overview

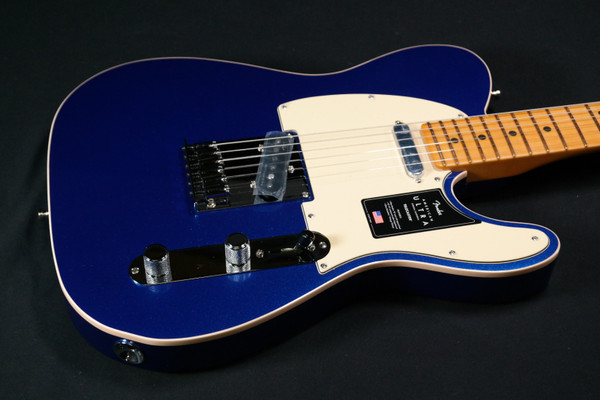

American Ultra is our most advanced series of guitars and basses for discerning players who demand the ultimate in precision, performance and tone. The American Ultra Telecaster features a unique Modern D neck profile with Ultra rolled fingerboard edges for hours of playing comfort, and the tapered neck heel allows easy access to the highest register. A speedy 10-14 compound-radius fingerboard with 22 medium-jumbo frets means effortless and accurate soloing, while the Ultra Noiseless Vintage pickups and advanced wiring options provide endless tonal possibilities without hum. The sculpted rear body contours are as beautiful as they are functional. This versatile, state-of-the-art instrument will inspire you to push your playing to new heights.
Other features include sealed locking tuning machines, chrome hardware and bone nut. Includes premium molded hardshell case.
FEATURES
Alder or ash body with sculpted rear contours
Two Ultra Noiseless Vintage Tele single-coil pickups
"Modern D"-shaped neck with Ultra satin finish
10"-14" compound-radius fingerboard; 22 medium-jumbo frets
Includes premium molded hardshell case
SPECS:
General
SERIES: American Ultra
ORIENTATION: Right-Hand
COLOR: Cobra Blue
COUNTRY OF ORIGIN: US
Neck
NECK MATERIAL: Maple
NECK FINISH: Satin Urethane with Gloss Urethane Headstock Face
NECK SHAPE: Modern "D"
NECK CONSTRUCTION: 4-Bolt Standard
FINGERBOARD RADIUS: 10" to 14" Compound Radius (254 mm to 355.6 mm)
FINGERBOARD MATERIAL: Maple
POSITION INLAYS: Black Pearloid Dots
NUMBER OF FRETS: 22
TRUSS ROD: Bi-Flex™
STRING NUT: Bone
NUT WIDTH: 1.685" (42.8 mm)
NUT MATERIAL: Bone
Body
BODY: Alder
BODY FINISH: Gloss Urethane
BODY SHAPE: Telecaster®
BODY BINDING: Cream
BODY STYLE: Solid Body
BODY MATERIAL: Alder
Hardware
BRIDGE: 6-Saddle American Tele® with Chromed Brass Saddles
PICKGUARD: 3-Ply Aged White
CONTROL KNOBS: Knurled Flat-Top
SWITCH TIP: Black
HARDWARE FINISH: Nickel/Chrome
TUNING MACHINES: Deluxe Cast/Sealed Locking (all short posts)
NECK PLATE: 4-Bolt Asymmetrical
STRAP BUTTONS: Locking
Electronics
BRIDGE PICKUP: Ultra Noiseless™ Vintage Tele®
NECK PICKUP: Ultra Noiseless™ Vintage Tele®
PICKUP CONFIGURATION: SS
CONTROLS: Master Volume (S-1™ Switch), Master Tone
SWITCHING: 3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
SPECIAL ELECTRONICS: S-1™ Switch Activates Series Wiring Option in Middle Pickup Position
Measurements
DIMENSIONS: 6.30x18.70x44.40 IN
SHIPPING WEIGHT: 20.65 LB
FRET SIZE: Medium Jumbo
SCALE LENGTH: 25.5" (64.77 cm)
SHIPPING LENGTH: 44.40 IN
SHIPPING HEIGHT 6.30 IN
SHIPPING WIDTH 18.70 IN
